Modern Design Automatic Water Level Float Valve (3/4" Side Inlet)

Our all new design float valve allows water to flow until a specific depth of water is reached. Once the water reaches this level, the float valve will be pushed up with water due to buoyancy and stop the flow of water. When the water level starts dropping, the valve will open again, and the water will start to flow again. No electricity is required - the buoyancy of the valve float does all the work.

The float valve automatically refills water for your water tank, water tower, hydroponic system, livestock, animal water drinker, swimming pool, or many other applications. Water features, fountains, the possible uses go on and on. Multiple designs are available, with top or side located inlets, and different gauge pipe fittings.

Compact in size and easy to install, our float valve design suits almost any application where automated filling is required. The male thread is 1/2 inch or 3/4 inch (depending on the model you choose) and uses BSP threads, perfect to fit most BSP thread connections. If your pipe thread is NPT, you just need to add a few PTFE TAPES on the male thread,then it should work perfectly as well.

  • The float valve works with 10 psi to 150 psi water pressure (if water pressure is too low or too high,the float valve will not be suitable - it will not work or be damaged)
  • Working Temperature:0-60 degrees C
  • Includes a filter on the inlet, to avoid sand and stone blocking the floating ball

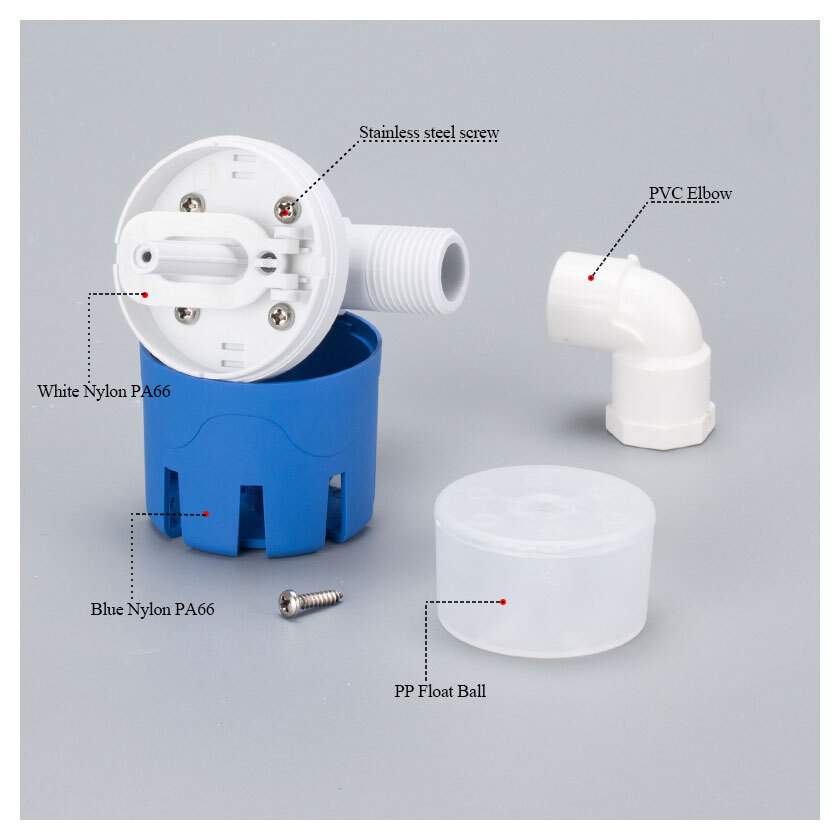

  • Nylon valve body, stainless steel screws, to avoid rust



SKU SUPP000044
Model # Does not apply
Barcode # Does not apply
Brand Supportive Solutions
Shipping Weight 0.2500kg
Shipping Width 0.220m
Shipping Height 0.080m
Shipping Length 0.160m
Shipping Cubic 0.002816000m3
Unit Of Measure ea
